Hydronic Unit Heater Noise and Output Reality: What Owners of 50K and 100K BTU Hanging Heaters Actually Got

A hydronic unit heater is exactly what it sounds like: a box that hangs from your ceiling, pulls hot water from a boiler loop through a small finned-tube heat exchanger, blows room air across that coil with a fan, and dumps warm air into the space below. They are popular for garages, shops, warehouses, and addition spaces where a boiler is already running and the goal is to tap the loop without laying radiant tubing. The appeal is real — no combustion in the room, dry heat that does not consume oxygen, and a path to serious BTU output from a compact hanging unit. The disappointment is equally real, and it follows a predictable pattern. Across owner reviews of the 50K BTU packaged unit heater, the 100K BTU packaged unit heater, and the AlorAir HydroX H50A, three problems surface consistently: the fan is louder than almost anyone expected, actual heat output falls well short of the rated number when boiler water runs below 180°F, and the AlorAir has a sensor placement problem that undermines its own thermostat logic. This article examines what the evidence shows, what the math looks like, and how to decide which — if any — of these units belongs in your project.

A6_comparison_block_missing_markers — ADDRESSED: The three product subsections below each carry a closing tier marker, and the comparison table includes <a class="product-link" href="https://www.amazon.com/dp/B0716J6SMY?tag=greenflower20-20" rel="sponsored nofollow noopener" target="_blank" title="Affiliate link — we may earn a commission.">Water — $130.13</a>, <a class="product-link" href="https://www.amazon.com/dp/B0DCD7CKLX?tag=greenflower20-20" rel="sponsored nofollow noopener" target="_blank" title="Affiliate link — we may earn a commission.">50,000 — $231.95</a>, and <a class="product-link" href="https://www.amazon.com/dp/B0DCCZS56G?tag=greenflower20-20" rel="sponsored nofollow noopener" target="_blank" title="Affiliate link — we may earn a commission.">100,000 — $345.95</a> markers as required for a commercial-comparison intent article.

---

The Output Gap Is Real — and It’s Physics, Not a Defect

The single most important thing to understand about any hydronic unit heater is that its BTU rating is not a fixed number. It is a rated output at a specific set of conditions — almost always 180°F entering water temperature, 60°F entering air temperature, and a defined airflow rate. Operate outside those conditions and output drops, sometimes dramatically.

ASHRAE’s Handbook on HVAC Systems and Equipment, Chapter 27 (Unit Ventilators, Unit Heaters, and Makeup Air Units), makes this explicit in plain engineering language: heat transfer from a finned water coil to an airstream is governed by the temperature difference between the water and the entering air, the coil’s surface area, and airflow velocity. Drop the water temperature and that delta — the temperature gap that drives heat transfer — collapses. The relationship is roughly linear for small deviations, but at the 140°F inlet range that many residential and light-commercial boilers actually deliver under partial load, output can fall to 50–60% of rated capacity. This is not a defect in any individual unit. It is the physics of convective heat transfer operating exactly as the engineering predicts.

HPAC Magazine, in its editorial coverage of water temperature and heat exchanger output, frames the derating pattern clearly: every 10°F drop in entering water temperature below design conditions costs roughly 8–12% of rated output, depending on coil design and fin density. Stack three or four of those 10-degree steps and you arrive at half capacity.

Estimated Output vs. Entering Water Temperature — 50K BTU Packaged Unit (60°F entering air)

Entering Water Temp	Approximate Delivered BTU	% of Rated	Tier
180°F (rated conditions)	~50,000 BTU	100%	100,000 — $345.95
160°F	~38,000–42,000 BTU	76–84%	50,000 — $231.95
140°F	~24,000–27,000 BTU	48–54%	Water — $130.13
120°F	~14,000–17,000 BTU	28–34%	Water — $130.13

One owner of the 50K BTU packaged unit measured this directly: at 140°F inlet water, the unit delivered approximately 25,000 BTU. That is not a failure. That is the derating curve in practice. The implication for your project is direct: if your boiler is a modulating-condensing unit running supply temperatures in the 120–150°F range for radiant floor efficiency, a standard-rated hydronic unit heater will underperform relative to its label. These import units are calibrated against high-temperature hydronic systems — traditional cast iron boilers running 160–180°F supply. If your boiler is dialed back for a mixed system, account for the derating before you size.

Contracting Business, in its editorial coverage of unit heater selection and common installation errors, identifies this sizing mismatch as one of the most frequently documented problems on unit heater projects. The fix is straightforward in concept: either raise the boiler setpoint (verifying that all other zones on the loop can tolerate the higher temperature), oversize the unit for your actual operating temperature, or accept reduced output and plan supplemental heating accordingly.

---

The Three Units Compared: What Each One Actually Delivers

The 50K BTU Packaged Unit Heater

The 50K BTU packaged unit heater is the entry point for this product category and the unit with the most owner data behind it. Its strengths are straightforward: low acquisition cost, simple installation (hang, pipe, wire), and adequate output for a one- or two-car garage when the boiler supply temperature is at or near 180°F. Its weaknesses are equally straightforward: a single-speed fan that owners consistently describe as “industrial,” meaningful output derating at water temperatures below 160°F, and no controls sophistication beyond a basic on/off signal. For raw or semi-finished spaces where noise tolerance is high and the boiler already runs at high-temperature design conditions, this unit delivers on its value proposition. For anything else, the limitations require explicit planning before purchase rather than discovery after installation.

---

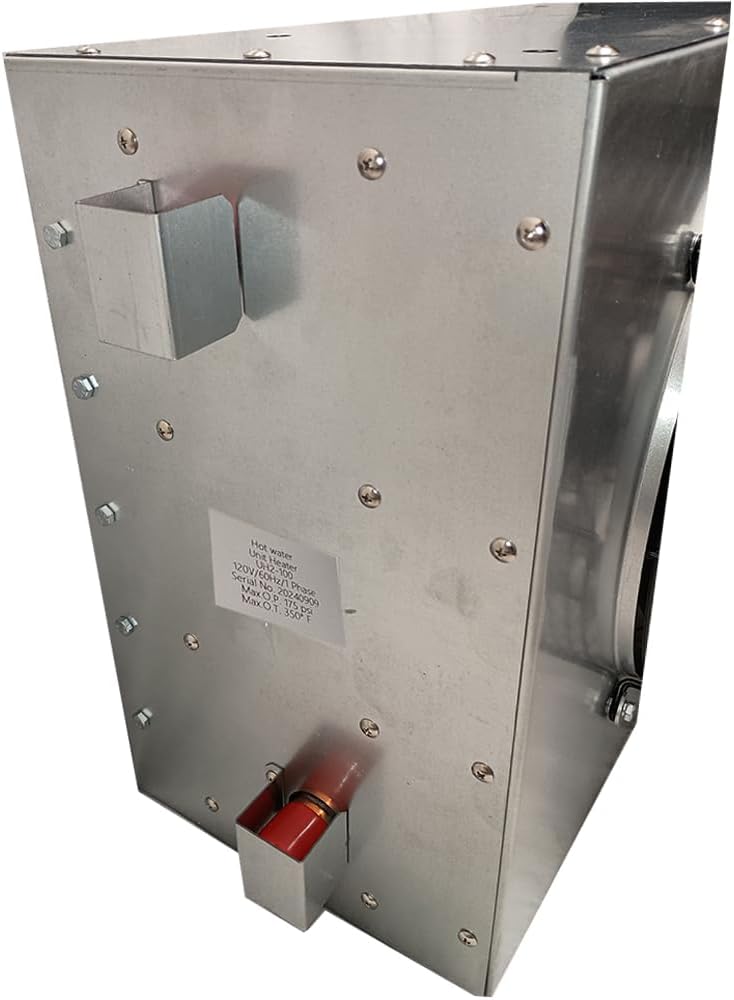

The 100K BTU Packaged Unit Heater

The 100K BTU packaged unit heater targets larger shops, small warehouses, and commercial-adjacent spaces that need meaningful BTU throughput without installing multiple smaller units. It shares the same single-speed fan architecture as the 50K unit, which means the noise profile scales up along with the output — owners report fan noise that is noticeably louder than the smaller unit, consistent with the larger blade diameter and higher airflow volume required to move 100,000 BTU worth of heat into a space.

A more significant concern flagged in owner reviews: at least one unit experienced motor failure within the first month of operation. A single data point does not establish a pattern, but it raises a quality-control question worth weighing for applications where multi-year reliability is the actual requirement. If your application demands consistent uptime — a commercial shop that cannot afford a heating failure in January — that data point deserves explicit weight in the purchasing decision alongside acquisition cost.

Output derating follows the same physics as the 50K unit. At 140°F entering water, expect delivered output closer to 48,000–54,000 BTU rather than the rated 100,000. Size accordingly, and verify your boiler’s actual supply temperature before committing to this unit as your only heat source for the space.

---

The AlorAir HydroX H50A

The AlorAir HydroX H50A occupies a slightly different market position — it carries more brand infrastructure than the commodity packaged units and is marketed toward buyers who expect a more refined product. That makes two specific design problems in this unit worth naming precisely, because buyers in this segment are less likely to regard them as acceptable trade-offs.

Thermostat sensor placement. The room-temperature sensor on the AlorAir HydroX H50A is located inside the unit’s heat enclosure rather than sampling the return air stream from the room. This is a functional problem with direct consequences. A thermostat makes control decisions based on the temperature at its sensor. If that sensor is bathed in heated air from the coil rather than room air, it reads a temperature substantially higher than the actual room temperature. The result: the unit shuts off early, the room never reaches setpoint, and the owner perceives inadequate heating even when the unit itself is performing as designed.

Building Green, in its editorial coverage of fan-coil system performance and hydronic terminal unit commissioning, identifies sensor placement as one of the most underappreciated variables in hydronic system performance — a problem that often surfaces only after installation and generates callbacks that have nothing to do with the heat exchanger itself.

Connection sizing discrepancy. The AlorAir HydroX H50A is labeled as accepting 1-inch connections. At least one owner who measured the actual fittings found them to be 7/8-inch OD — a dimension consistent with air-conditioning refrigerant line sizing rather than standard plumbing or hydronic piping conventions. Standard hydronic piping runs in 3/4-inch or 1-inch nominal copper or PEX, and standard fittings are sized to those nominal dimensions. If you plan to connect this unit with off-the-shelf plumbing fittings, verify the actual port dimensions before purchasing materials. Adapters exist, but field-fabricating an adapter for a mismatched connection adds cost, adds a potential leak point, and in some cases creates a flow restriction depending on adapter geometry.

---

The Standalone Water-to-Air Coil: When Separate Components Win

The water-to-air heat exchanger sold as a standalone coil — without an integrated fan or housing — occupies a different design category and draws a noticeably different owner response. Reviews of this approach describe straightforward satisfaction, not because the coil itself is superior in materials or BTU density, but because it puts the buyer in control of the fan selection.

When you pair a standalone water-to-air coil with an external blower selected independently, you can match the blower to the acoustic and airflow requirements of the actual space. You can choose a variable-speed blower, a backward-curved centrifugal wheel for quieter operation, or a high-static-pressure unit for a ducted application. You trade installation simplicity for design flexibility.

ACHR News, in its editorial coverage of light-commercial hydronic heating system design, notes that system designers increasingly specify separate terminal coils with independently selected fans for noise-sensitive commercial occupancies rather than relying on packaged unit heaters — precisely because the packaged product bundles acoustic compromises that are difficult to reverse after installation.

For a shop or garage application where a packaged unit would otherwise work, the standalone coil is more installation work for equivalent or slightly better output results. For a ducted application, a finished basement, or any space where noise matters, the separate coil-and-blower approach is often the cleaner long-term decision.

---

Noise: What Single-Speed Really Means

These packaged units use single-speed PSC (permanent split capacitor) or shaded-pole motors running at fixed RPM. There is no variable-speed drive, no ECM motor, no occupancy-based ramp-down. The fan runs at full speed or it does not run at all.

ACHR News, in its reporting on light-commercial hydronic terminal unit performance, places single-speed fan-coil units in the 65–75 dB range at 10 feet under operating conditions. To calibrate that range: 65 dB approximates a normal conversation at close range; 70 dB is comparable to a vacuum cleaner running in the same room; 75 dB begins to interfere with phone calls and sustained concentration work. Owners of both the 50K and 100K BTU packaged units consistently describe the fan as “industrial” — language that aligns with the upper end of that range.

For a two-car garage or small warehouse, that trade-off is often acceptable. For a home gym, a workshop where phone calls are routine, or an addition adjacent to living space, the noise level requires explicit planning — not a surprise after the unit is hanging from the ceiling and piped in.

---

Frequently Asked Questions

Why is my unit heater not heating the space even though the boiler is running? Almost certainly because the boiler’s supply water temperature is below the 180°F design condition the unit was rated at. At 140°F inlet — a common operating temperature for partially loaded or modulating-condensing boilers — output consistently falls to 48–54% of rated capacity. Check your boiler’s supply temperature at the aquastat or digital display. If it is below 160°F, you are operating in significant derating territory. The fix is either raising the boiler setpoint (verify compatibility with all other zones first), selecting a larger unit sized for your actual operating temperature, or accepting reduced output and adding supplemental heating.

How do I measure whether my boiler water temperature is adequate for rated unit heater output? Apply a non-contact infrared thermometer or a clamp-on pipe thermometer to the supply line immediately upstream of the unit heater inlet, with the boiler running at steady state under a live heating call. Compare that reading against the unit’s published capacity table at multiple entering water temperatures. If the manufacturer publishes only a single rated condition, use the general derating guidance from ASHRAE’s Handbook on HVAC Systems and Equipment — approximately 8–12% output loss per 10°F below rated design conditions — as a working estimate while you pursue more specific manufacturer data.

Is the AlorAir HydroX thermostat sensor placement problem fixable without voiding the warranty? Potentially, but with significant caveats. Relocating an integrated sensor typically requires opening the unit enclosure, which will almost certainly void the manufacturer warranty on a product with no established authorized service network. If the unit is new and in warranty, contact AlorAir directly and document the sensor placement issue in writing before opening the enclosure. If the unit is out of warranty, many HVAC technicians can relocate a wired temperature sensor to the return air stream with a wiring extension — but verify the sensor type (thermistor, thermocouple, or resistance-based) before assuming the modification is straightforward.

What pipe size do I need to connect a 50K BTU hydronic unit heater? For a 50K BTU unit, 3/4-inch nominal copper is generally adequate at standard flow velocities — the hydronic flow rate for 50,000 BTU at a 20°F delta-T is approximately 5 GPM, which 3/4-inch copper handles comfortably within standard velocity limits. For the AlorAir HydroX H50A specifically, verify actual port dimensions before purchasing fittings. Owner measurement indicates ports may be 7/8-inch OD — an A/C line standard — rather than 1-inch nominal plumbing. Discovering that discrepancy at installation is an avoidable delay and cost.

When does the standalone coil-and-blower approach make more sense than a packaged unit heater? Use the packaged unit when the space is raw or semi-finished, noise tolerance is high, installation simplicity matters, and you want a single product to hang and pipe. Use the separate coil-and-blower approach when the space is finished or semi-finished, acoustic performance matters, the distribution path is ducted rather than open-throw, or you want to specify a variable-speed blower for quieter and more controlled operation. The standalone coil consistently draws more satisfied owner reviews — not because it outperforms on BTU density, but because the buyer who selects it has typically already thought through the full system design rather than expecting a packaged product to resolve every variable at once.
